Overview

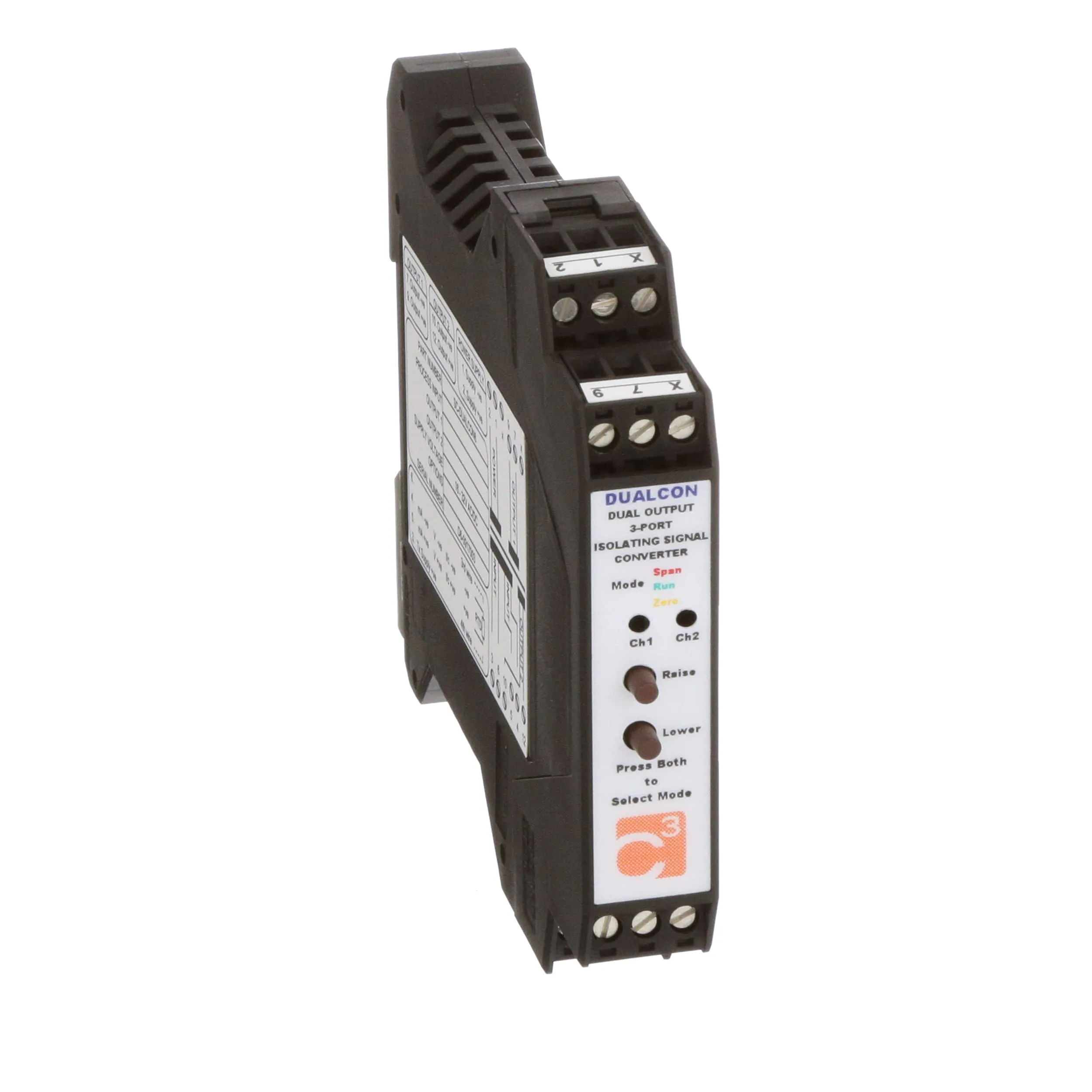

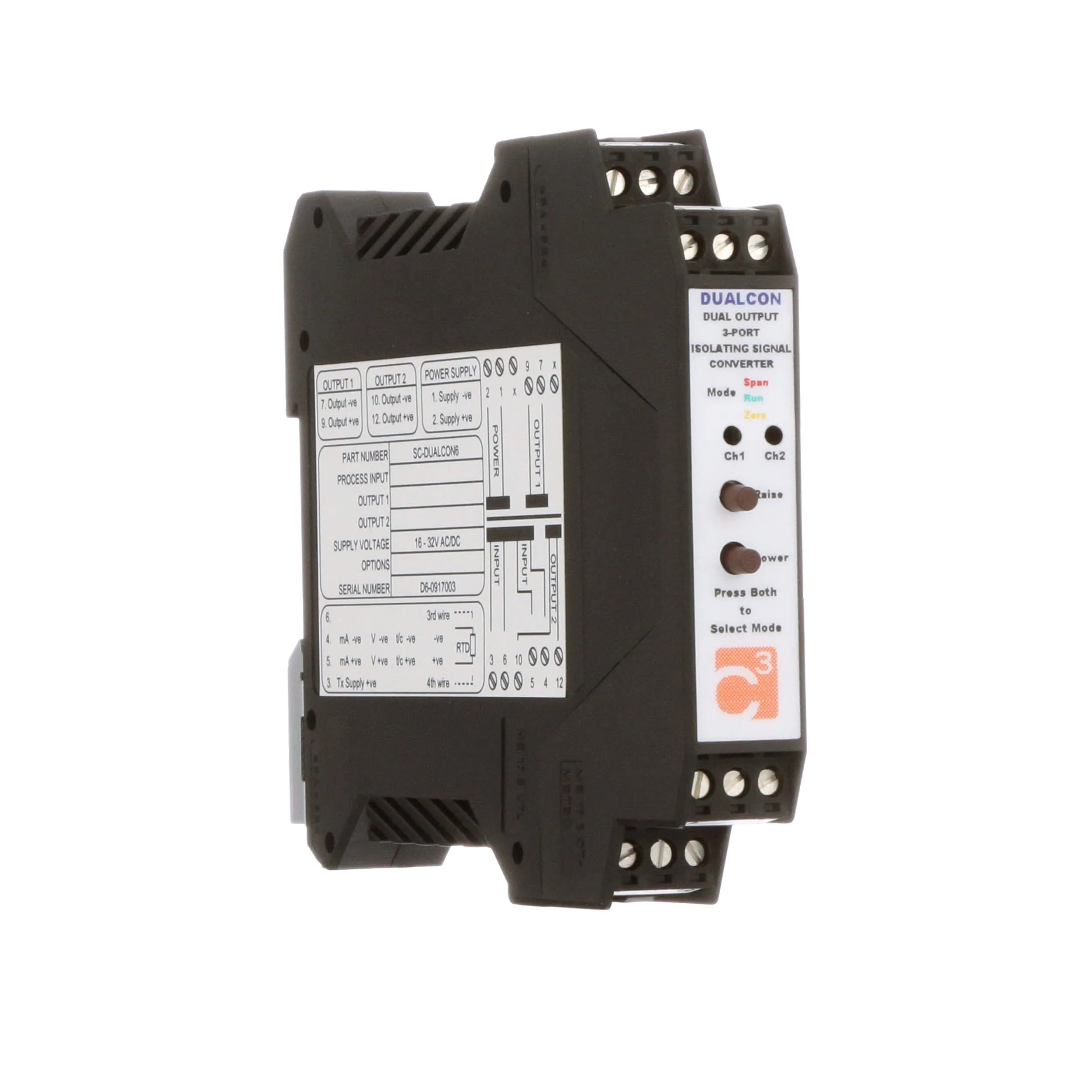

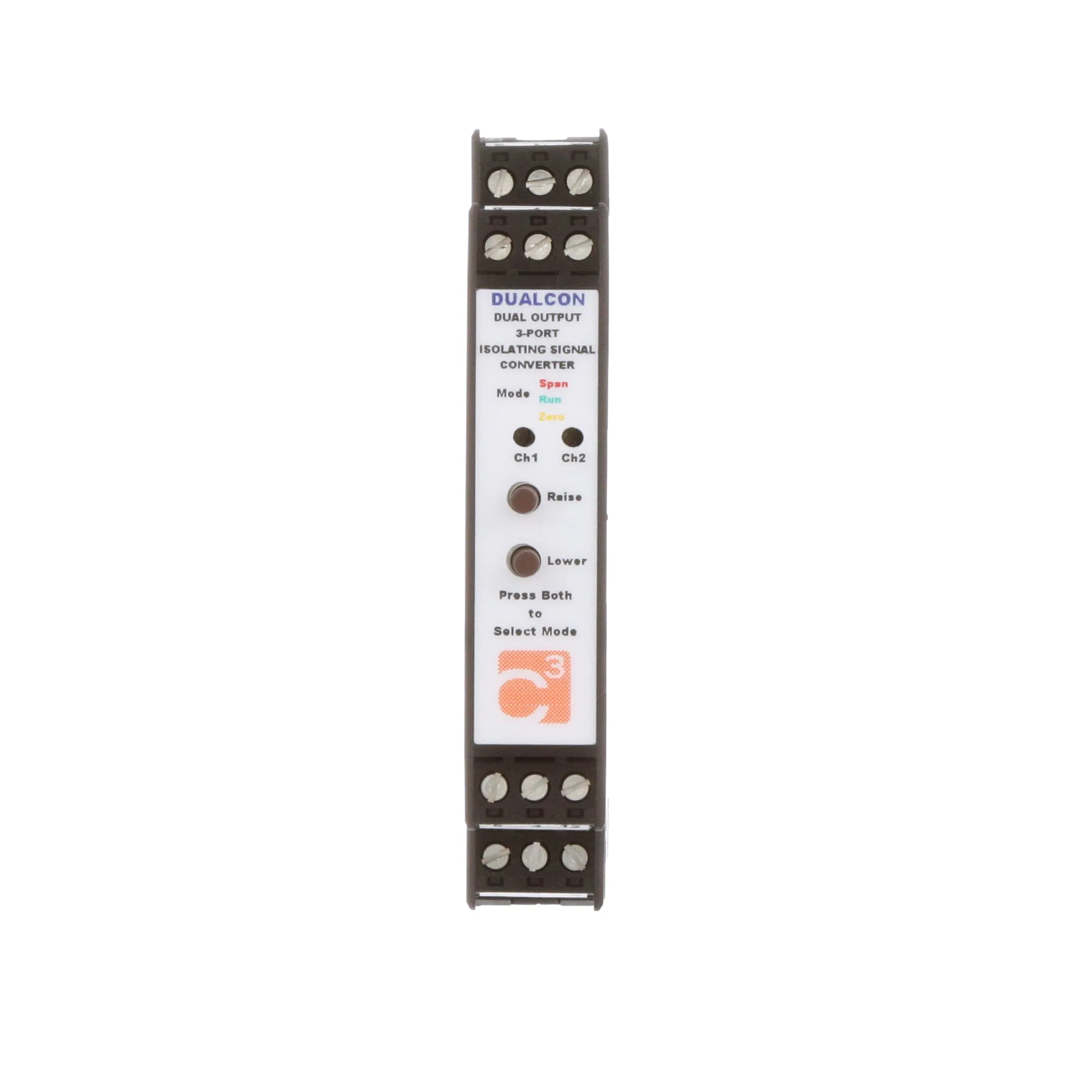

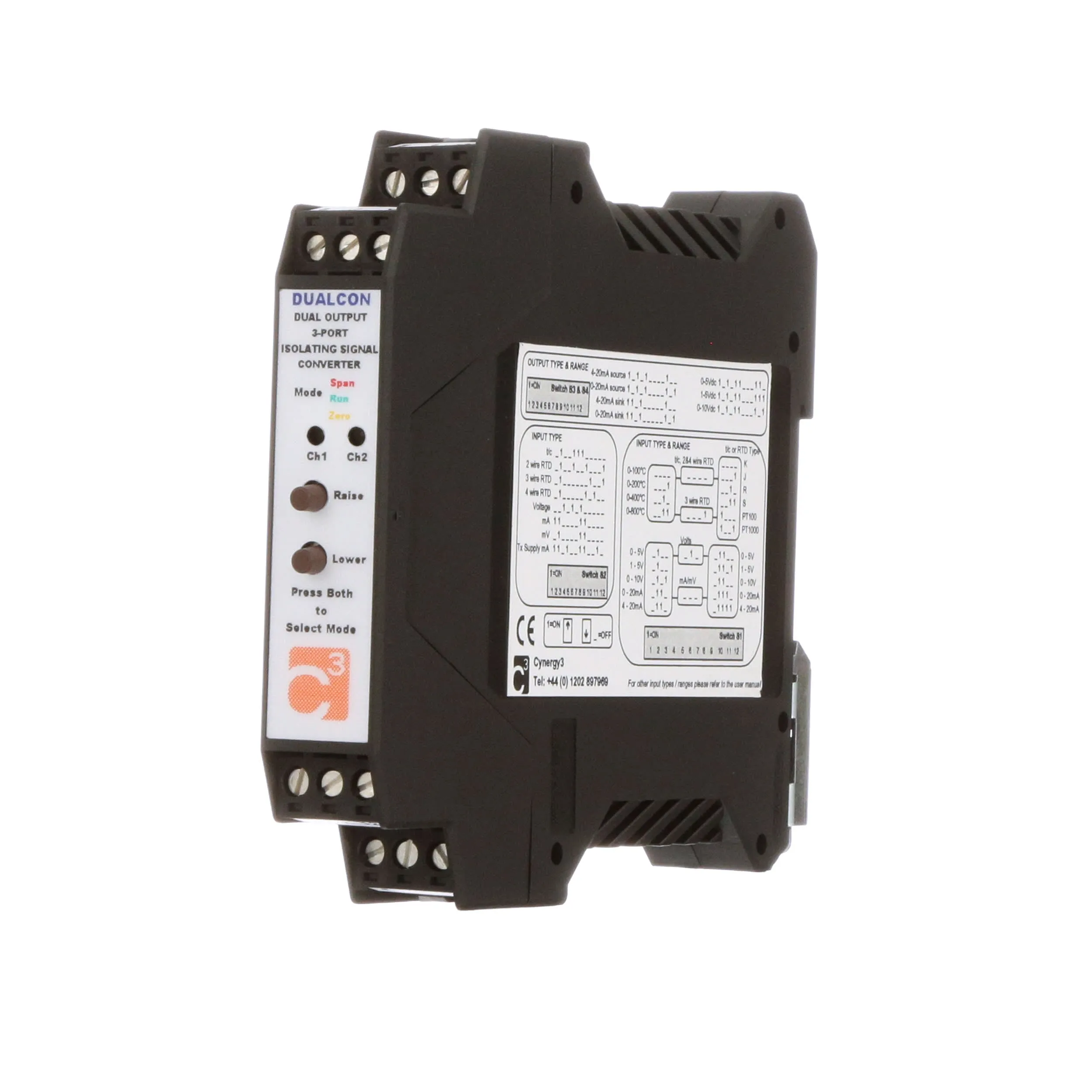

The SC-DUALCON6 Isolating Signal. Converter can accept a wide range of inputs including 4-20mA, thermocouple, RTD and voltage signals. The units produce two high level DC outputs of either voltage or current.
Full 3 port isolation is standard as is an isolated transmitter supply which can be used to power any standard 2-wire 4-20mA transmitter.
The input type and range can be user selected using simple DIL switches inside the unit. All RTD and Thermocouple inputs can be fully linearised.Non-interactive zero and span controls make adjustment of the unit quick and simple. Other features include optional inversion of the input signal, on either one or both of the outputs. The unit operates from any supply from 16 to 36 Vdc or 16 to 32Vac

Features:

16-36Vdc, 18-32Vac Supply
Selectable mA or Voltage output

Isolated Transmitter Supply

Very High Accuracy, Low Cost

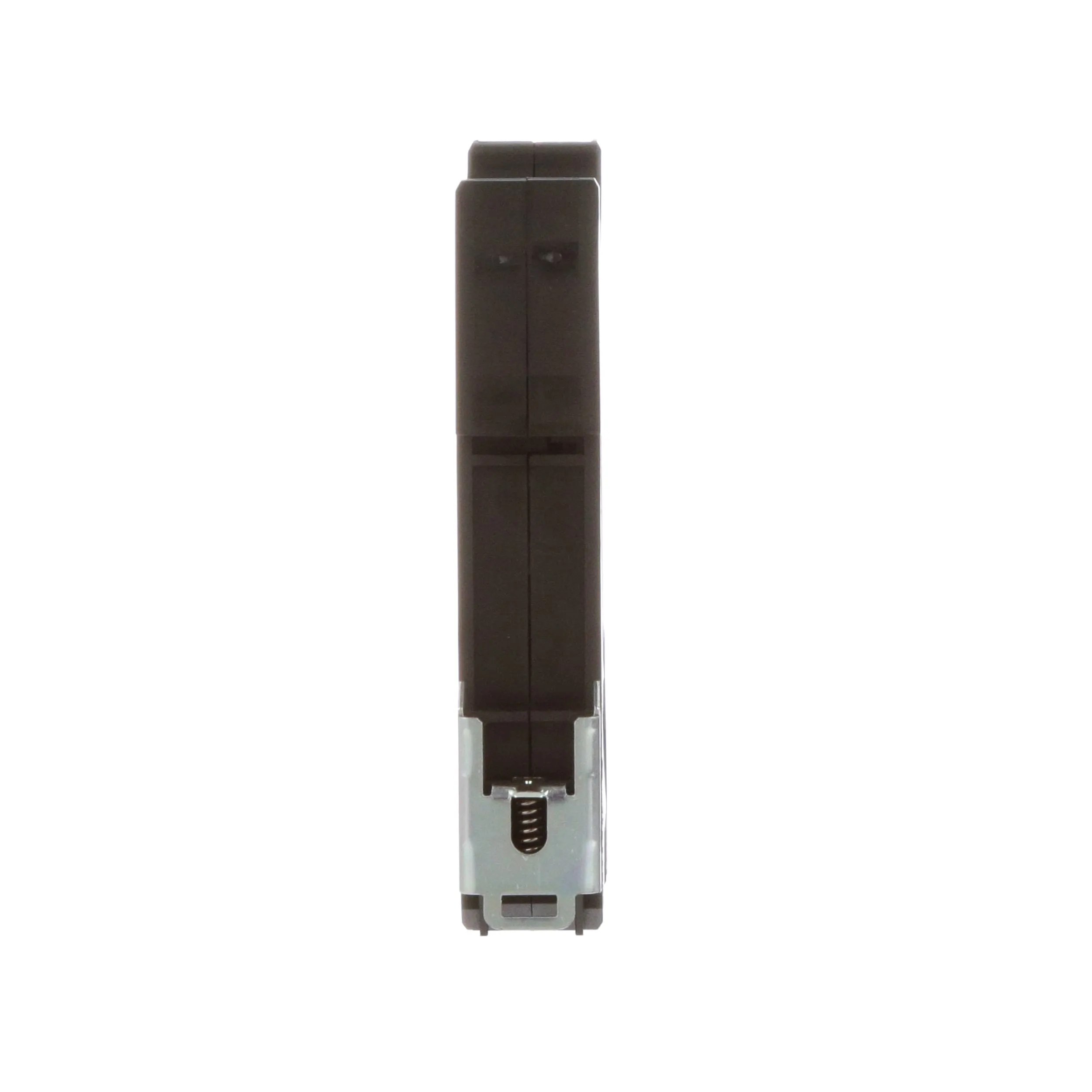

Only 17.5mm Wide on DIN rail
Universal Configurable Input
2 Configurable Outputs, Full 3-Port isolation
